This knowledge base article will assist ICANotes clients with utilizing the Topaz signature pad on the login at http://ehr.icanotes.com. Installing the Topaz SigWeb extension enables the signature pad to be used within ICANotes. Each section in this guide is highlighted for easier navigation.

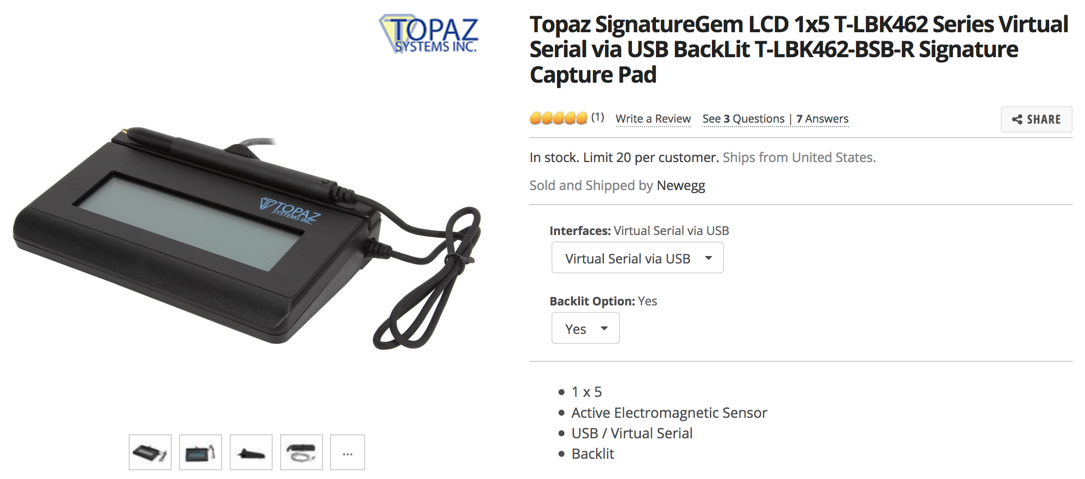

ICANotes only works with a specific model of Topaz pad. The model number is T-LBK462-BSB-R. Please be sure that the interface type is Virtual Serial via USB. Here is an example site where you purchase these pads:
https://www.cdw.com
Prices range from $356 to $440.00. Topaz signature pads should be purchased from an authorized reseller to ensure that a warranty is available.
Authorized resellers of Topaz pad include but are not limited to:
- CDW https://www.cdw.com/
- Barcodes Inc https://www.barcodesinc.com/
- Newegg Business https://www.neweggbusiness.com/
A 3-year limited warranty should be included in any device you purchase. Companies such as eBay are unlikely to provide a warranty.
Contact sales@topaz.com or 805-520-8292 to confirm if another vendor is an authorized reseller.
Installation
Download ICANotes InstallerDownload the ICANotes-integrated Topaz installer from:
https://upload.icanotes.com/installers/win/InstallTopaz.exe
Run the Installer

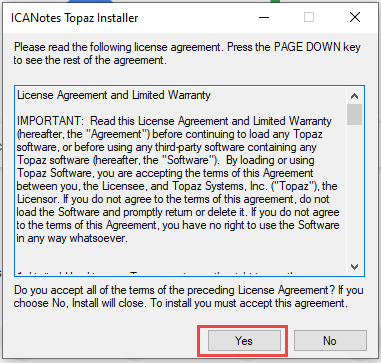

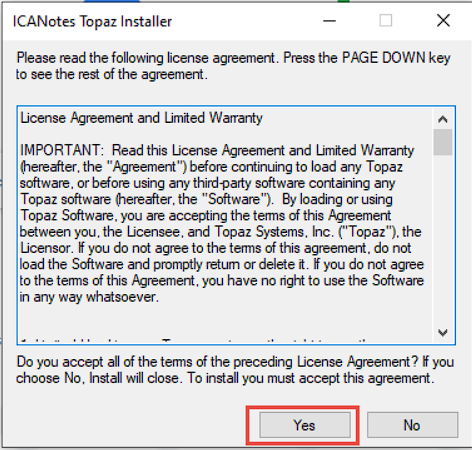

Run the .exe file and accept the terms presented by Topaz and ICANotes.

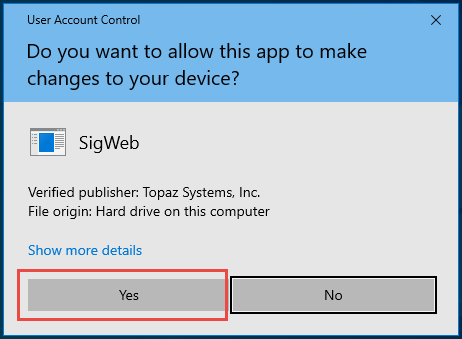

If prompted to allow changes to your device, click Yes.

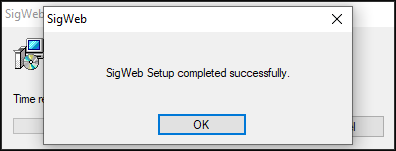

Wait for the message: "SigWeb Setup completed successfully."
Connect the Signature Pad
Once installation is confirmed:
Plug in your T-LBK462-BSB-R device.
The driver should install automatically.
If you see a message that the driver couldn't be found, leave the pad plugged in and re-run the installer.
✨ Note: Our installer includes preconfigured launch parameters and uses ICANotes' signed certificates to simplify the setup for supported models. If your not using our recommended model you will need to install the Sigweb software directly from Topaz and follow their instructions https://topazsystems.com/sdks/sigweb.html
Enabling the Topaz SigWeb Feature Inside ICANotes

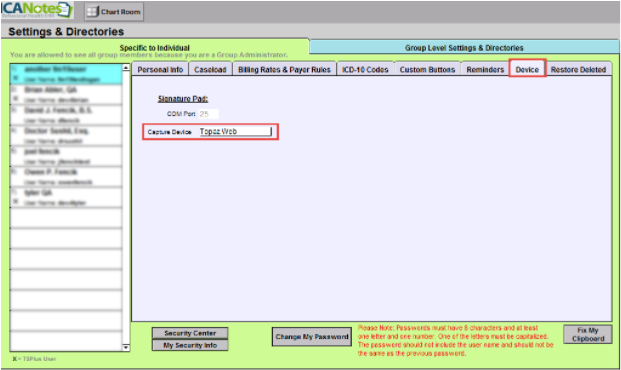

Login to your ICANotes account at https://ehr.icanotes.com. From the Chart Room navigate to the Device tab in your individual Settings and Directories.
Select Topaz Web from the Capture Device dropdown menu. You can save your changes by navigating to any other tab or going back to the Chart Room. There is no "save" button in this tab.
How to Sign using the Topaz SigWeb Feature Inside ICANotes

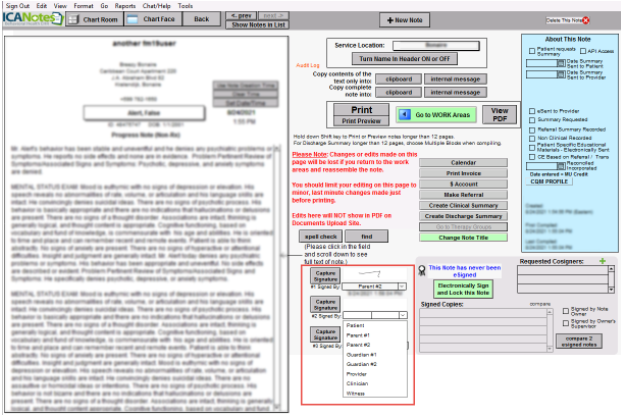

From the compiled note screen you will select from the three available drop downs determining who is signing the note. Once a selection is made from the dropdown filed, click to Capture Signature.

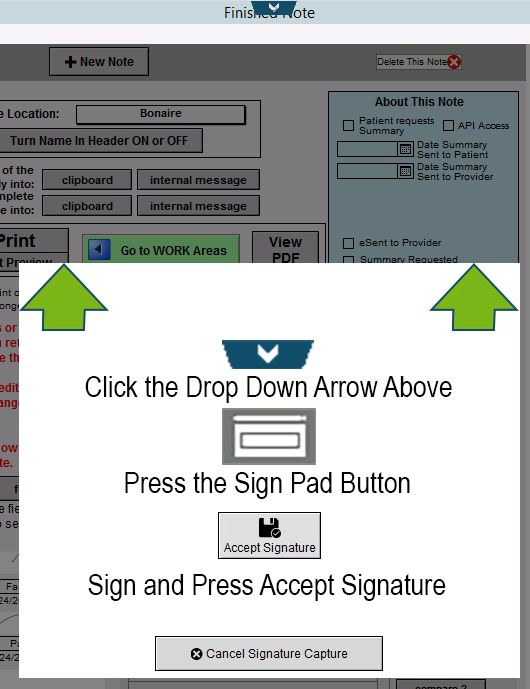

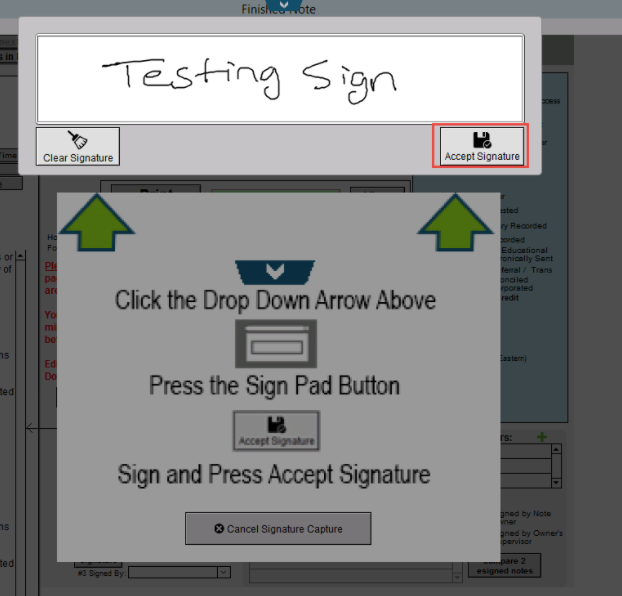

A new window will open providing you with instructions on how to open the SigWeb Signature Capture Popup. Follow the visual instructions to open the SigWeb Signature Capture Screen.
**Note: If you need to cancel the Signature Capture you can do so anytime by clicking the “Cancel Signature Capture” button.**
Below is a video that explains the installation and signature capture process:
This next video demonstrates the signature process:
Frequently Asked Questions
What browsers / operating systems are supported?
Windows 7, 8.1, or 10
Firefox, Chrome, Edge (10166 build or newer), Opera, or IE11+
Will it work on a Mac?
At this time, the Remote Desktop Connection software available for Mac does not support the mapping of serial ports, so it cannot work. You may purchase a computer running one of the supported versions of Microsoft Windows listed above.
I already have a Topaz tablet. Will it work with ICANotes?
The signature pad functionality of ICANotes is designed only to work with model 462 BSB pads. It will not work with any other pad.
My antivirus/internet security software identifies the installer as a Trojan/virus. Is it safe to run this installer?
Some security programs will falsely identify our installer as malware. As long as you have downloaded the software from our website, it is safe to install. Here’s some more information about our installer: It is built using a compiled autoIT script. It first sets a registry key to force COM25, then installs the USB Serial driver, and then finally installs an updated ICANotes RDP file to the desktop.
My antivirus/internet security software won’t let me run the installer.
Please consult the documentation for your security software to temporarily disable it until you’ve run our installer. Don’t forget to re-enable it when you’re done.
After installing, I see an error message that “This program might not have installed correctly”. What is this?
This is a feature of Windows called Program Compatibility Assistant. It is just a warning, and can be safely ignored.
I’m seeing an error message about the COM port when I try to sign. I know that it’s plugged in and I’ve installed the driver. What else could be the problem?
Check in the Device Manager that the COM port is set to COM25. You can do this under the Ports section. Right click on USB Serial Port and go to Properties. Click Port Settings, and then Advanced. Make sure the COM port number is set to COM25. You may see a warning about the port being in use. If you are certain that some other device on your system iis using ths COM port number, then call ICANotes support and ask them to change the COM port for your account.
“Unable to open\\.\COM25. Either it doesn't exist or it is in use by another program.” (aka Ghost Devices)
I installed the software that came with the tablet, even though I wasn’t supposed to. What do I do now?
Using Device Manager, go to Ports. Right click on USB Serial Port and then choose Uninstall. Now unplug the tablet and reboot your computer. Proceed with the installation as outlined above.
I ran the installer and plugged it in, then I got a message about the driver not being installed. What should I do?
Unplug the signature pad, then run the Installer again.
